CAB 820 – The right choice for most balancing tasks

<a href=''>CAB 820 – The right choice for most balancing tasks</a>

CAB 820 is our latest market entry measuring unit.

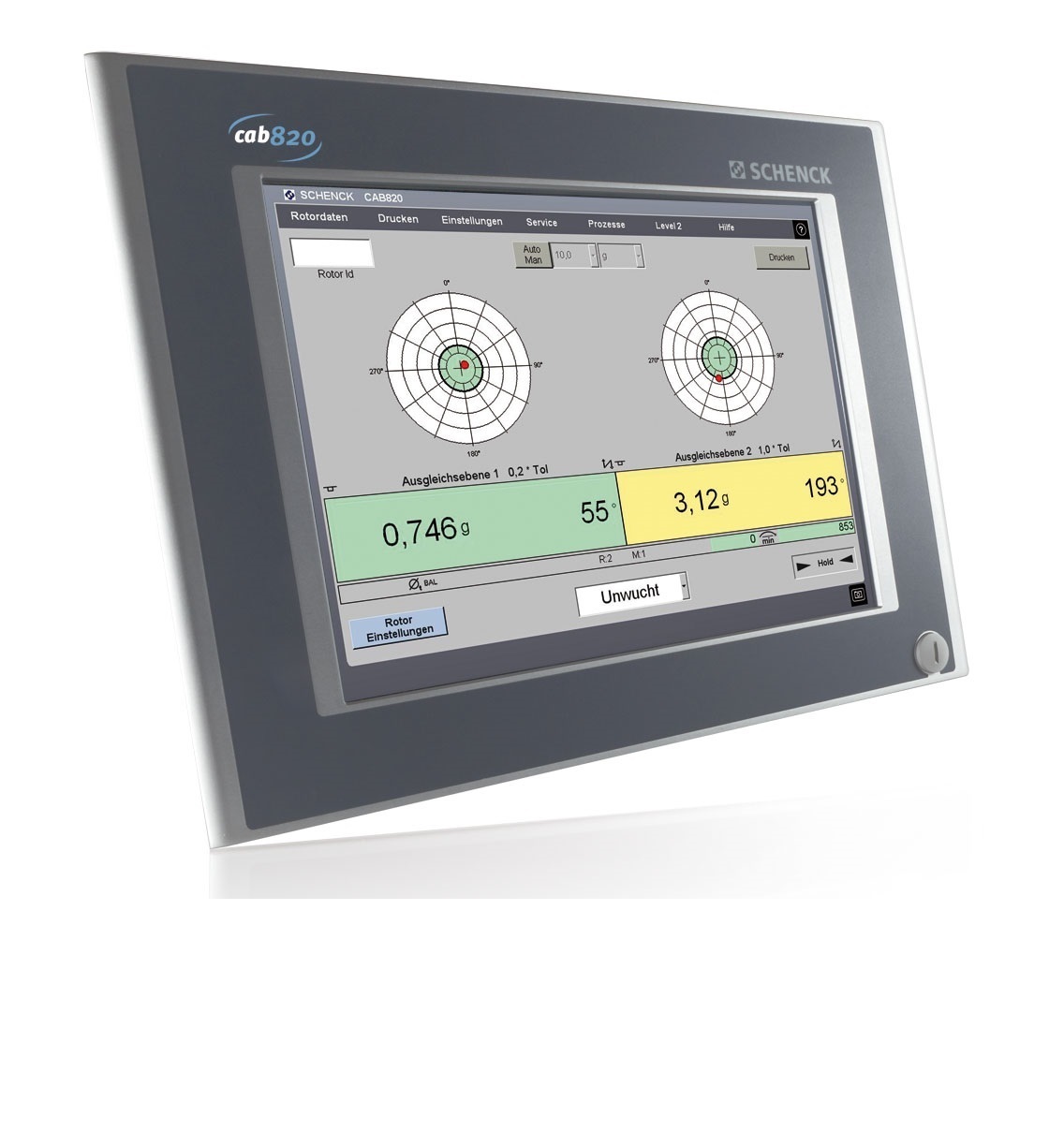

The user interface is based on a Windows 10 IoT4 Enterprise Industrial PC with touch-Screen- colour Display and USB at the front for convenient data export to storage media and networking capability.

All functions required for standard balancing applications are included, and are laid out logically for convenient operator access. These include:
  • 2 plane / dynamic unbalance display both digitally and as “Vectormeter” graphics
  • Static / Couple indication
  • Automatic in-tolerance indication
  • Tolerance Calculation to ISO 21940-11
  • Equally spaced correction angles for component balancing
  • Index-, key- and single- compensation
  • Balancing speed range 100 to 5000 rpm

CAB820 Brochure
